VZ529

VZ529; Incar S.r.l.; (ID = 962348) Radio

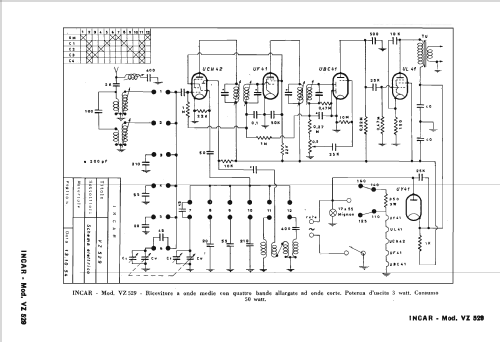

VZ529; Incar S.r.l.; (ID = 2465714) Radio
VZ529; Incar S.r.l.; (ID = 1328715) Radio VZ529; Incar S.r.l.; (ID = 1328712) Radio
VZ529; Incar S.r.l.; (ID = 1328713) Radio VZ529; Incar S.r.l.; (ID = 1328714) Radio
VZ529; Incar S.r.l.; (ID = 1328716) Radio VZ529; Incar S.r.l.; (ID = 1328717) Radio
Use red slider bar for more.
VZ529; Incar S.r.l.; (ID = 1328715) Radio
Incar S.r.l.;: VZ529 [Radio] ID = 1328715 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model VZ529, Incar S.r.l.; Vercelli

Country:  Italy
Manufacturer / Brand:  Incar S.r.l.; Vercelli
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: VZ529 - Incar S.r.l.; Vercelli
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 245 x 210 mm / 19.3 x 9.6 x 8.3 inch
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Mentioned in -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
Literature/Schematics (1) Il Manuale del Radiomeccanico (Vol.3°)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
