442W; Ingelen, (ID = 652539) Radio

442W; Ingelen, (ID = 652541) Radio

442W; Ingelen, (ID = 9451) Radio
442W; Ingelen, (ID = 568770) Radio
Use red slider bar for more.
442W; Ingelen, (ID = 568770) Radio

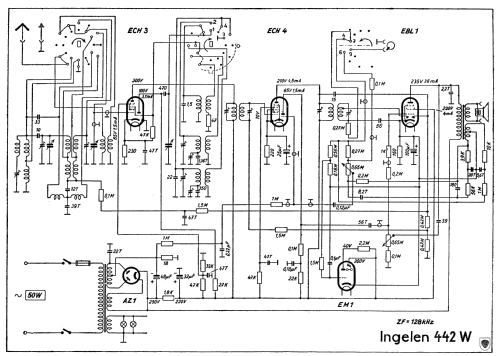

Ingelen,: 442W [Radio] ID = 568770 400x329
Select picture or schematic to display from thumbnails on the right and click for download.
For model 442W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 ECH4 EBL1 AZ1 EM1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: 442W - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Ch= Philips 789A. Sogenanntes Verlagerungsgerät.

External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))
