Columbus 50WL

Columbus 50WL; Ingelen, (ID = 1301416) Radio

Columbus 50WL; Ingelen, (ID = 1301374) Radio

Columbus 50WL; Ingelen, (ID = 1301373) Radio

Columbus 50WL; Ingelen, (ID = 1301372) Radio

Columbus 50WL; Ingelen, (ID = 1301371) Radio
Columbus 50WL; Ingelen, (ID = 25213) Radio Columbus 50WL; Ingelen, (ID = 25214) Radio
Columbus 50WL; Ingelen, (ID = 25215) Radio
Use red slider bar for more.

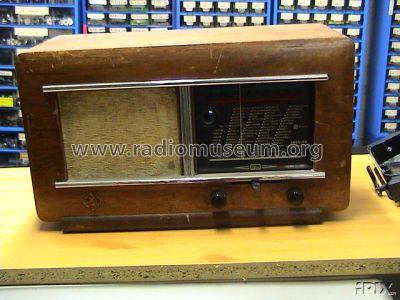

Columbus 50WL; Ingelen, (ID = 25213) Radio
Ingelen,: Columbus 50WL [Radio] ID = 25213 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Columbus 50WL, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Bild ebay

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ1
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Columbus 50WL - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Frühl.1950
Price in first year of sale 1'275.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
