Cosmos W (Geographic)

• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9002

• • Brand: Elektrot.Fabrik Ludwig Neumann

• Picture

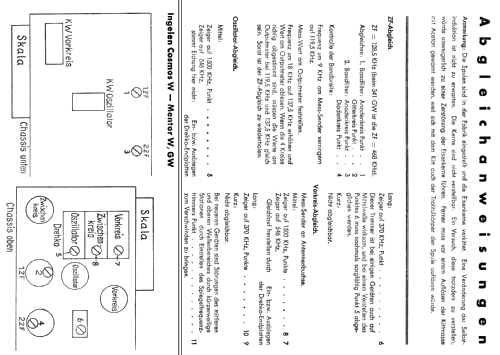

• Schematics

Previous Next

Previous Next

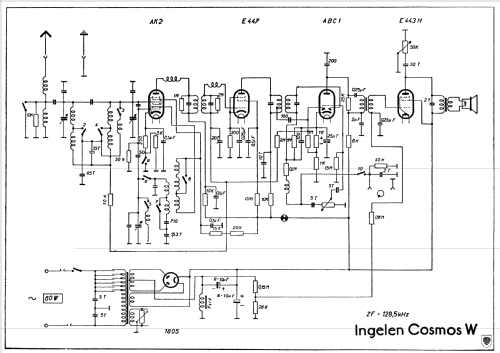

Click on the schematic thumbnail to request the schematic as a free document.

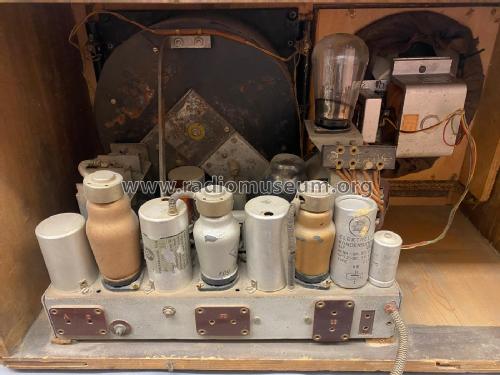

• Number of Tubes
• 5

• Valves / Tubes
• AK1 or AK2 E447 or AF3 ABC1 E443H or AL1 1805 or AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 200; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cosmos W - Ingelen, Elektrotechnische

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 565 x 342 x 325 mm / 22.2 x 13.5 x 12.8 inch

• Notes

• Geographic, mit farbiger Karte, mit Abstimmanzeige unterhalb der Skala.

• Net weight (2.2 lb = 1 kg)
• 16.9 kg / 37 lb 3.6 oz (37.225 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
