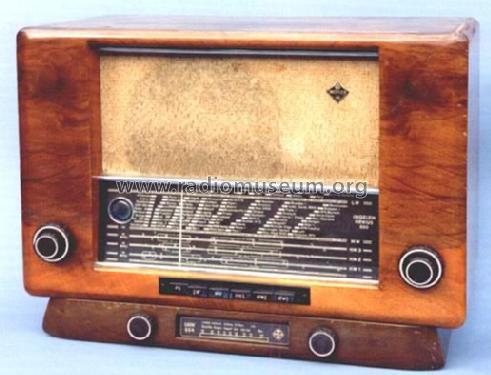

Genius 650W; Ingelen, (ID = 1762655) Radio
Ingelen,: Genius 650W [Radio] ID = 1762655 1400x1044
Select picture or schematic to display from thumbnails on the right and click for download.
For model Genius 650W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ1
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Genius 650W - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 340 x 250 mm / 20.1 x 13.4 x 9.8 inch
Notes 3 x KW
Net weight (2.2 lb = 1 kg) 9.9 kg / 21 lb 12.9 oz (21.806 lb)
Price in first year of sale 1'690.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in RADIOBOTE, Österr. (Heft 45/2013, S.13 ff, Gerätebeschreibung)
