Genius 651W

Genius 651W; Ingelen, (ID = 347743) Radio

Genius 651W; Ingelen, (ID = 347760) Radio

Genius 651W; Ingelen, (ID = 347761) Radio

Genius 651W; Ingelen, (ID = 346796) Radio

Genius 651W; Ingelen, (ID = 1230090) Radio

Genius 651W; Ingelen, (ID = 2136492) Radio
Genius 651W; Ingelen, (ID = 97568) Radio Genius 651W; Ingelen, (ID = 233958) Radio
Genius 651W; Ingelen, (ID = 233957) Radio Genius 651W; Ingelen, (ID = 97569) Radio
Genius 651W; Ingelen, (ID = 233955) Radio Genius 651W; Ingelen, (ID = 233956) Radio
Genius 651W; Ingelen, (ID = 251123) Radio Genius 651W; Ingelen, (ID = 294391) Radio
Genius 651W; Ingelen, (ID = 572466) Radio Genius 651W; Ingelen, (ID = 572467) Radio
Use red slider bar for more.

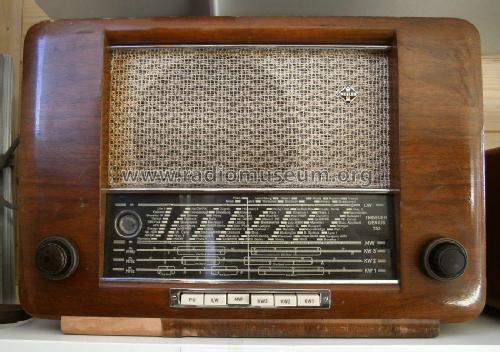

Genius 651W; Ingelen, (ID = 97568) Radio
Ingelen,: Genius 651W [Radio] ID = 97568 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Genius 651W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 451 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Genius 651W - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 360 x 255 mm / 20.7 x 14.2 x 10 inch
Notes 3 x KW , UKW vorbereitet
Price in first year of sale 1'995.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 437 models, 383 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Ingelen,: Genius 651W
Threads: 1 | Posts: 2
Hits: 1494     Replies: 1
ingelen: 651W; Genius removing knobs
Piotr Jachymczyk
18.Mar.13
  1

Hello,

can someone tell me what's the trick to remove smaller knobs? Bigger ones have small screws, but the smaller ones don't. I'm afraid to crack them, so I'll wait for the answer.

Regards

Piotr

Ottmar Lauth
07.Apr.13
  2

Hello,

the problem is the rust that fixes the knob to its axe. So it`s advisable to fight against it before trying to pull the knob off. My advice is the following : Wet the axe with a suitable agent ( The one I prefer for such situations is " Ballistol " ).Then turn the radio on its face so that the agent can creep between the plastic of the knob and the axe, wait for a while and then try to pull it off .

Best regards and good wishes.

Ottmar Lauth


Ingelen,: Genius 651W
End of forum contributions about this model
