Mentor W Mit Schalltüren

Mentor W ; Ingelen, (ID = 639596) Radio

Mentor W ; Ingelen, (ID = 37032) Radio

Mentor W ; Ingelen, (ID = 639597) Radio

Mentor W ; Ingelen, (ID = 339750) Radio

Mentor W ; Ingelen, (ID = 991707) Radio
Mentor W ; Ingelen, (ID = 73648) Radio Mentor W ; Ingelen, (ID = 11421) Radio
Mentor W ; Ingelen, (ID = 469375) Radio Mentor W ; Ingelen, (ID = 437408) Radio
Mentor W ; Ingelen, (ID = 437409) Radio Mentor W ; Ingelen, (ID = 469374) Radio
Mentor W ; Ingelen, (ID = 37033) Radio Mentor W ; Ingelen, (ID = 11420) Radio
Mentor W ; Ingelen, (ID = 11422) Radio Mentor W ; Ingelen, (ID = 37034) Radio
Use red slider bar for more.
Mentor W ; Ingelen, (ID = 73648) Radio
Ingelen,: Mentor W [Radio] ID = 73648 800x501
Select picture or schematic to display from thumbnails on the right and click for download.

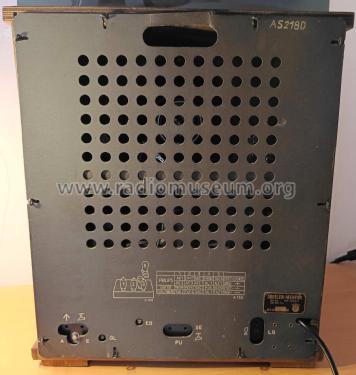

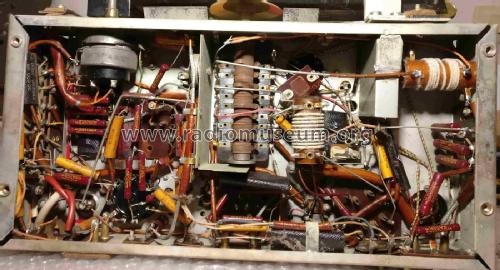

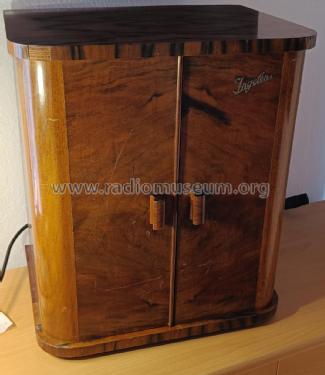

For model Mentor W Mit Schalltüren, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:

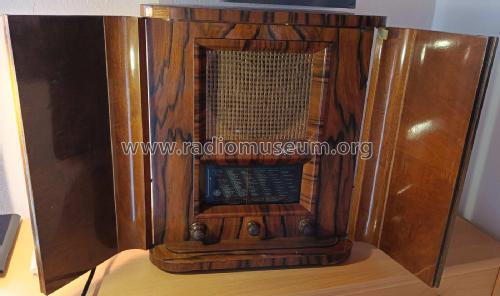

Ingelen Type Mentor mit Schalltüren offen

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner

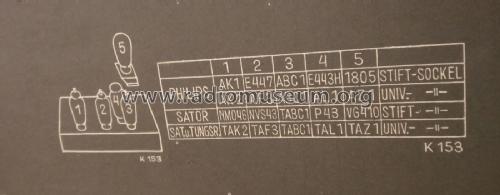

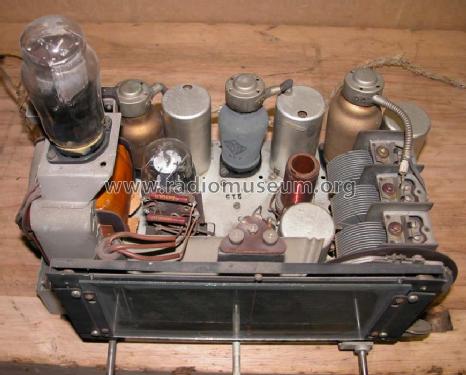

Valves / Tubes 5: AK1 or AK2 E447 or AF3 ABC1 E443H or AL1 1805 or AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 200; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Mentor W [Mit Schalltüren] - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Konzert-LS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

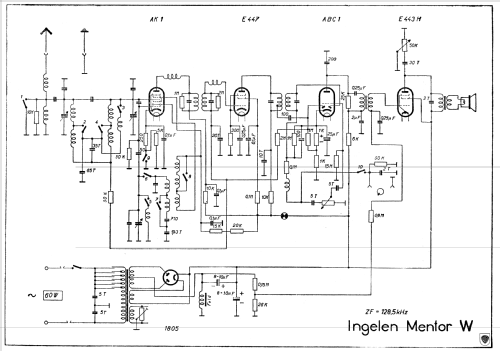

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
