UKW-Fidelio-3D GW

UKW-Fidelio-3D GW; Ingelen, (ID = 726266) Radio

UKW-Fidelio-3D GW; Ingelen, (ID = 726206) Radio
UKW-Fidelio-3D GW; Ingelen, (ID = 326621) Radio UKW-Fidelio-3D GW; Ingelen, (ID = 57224) Radio

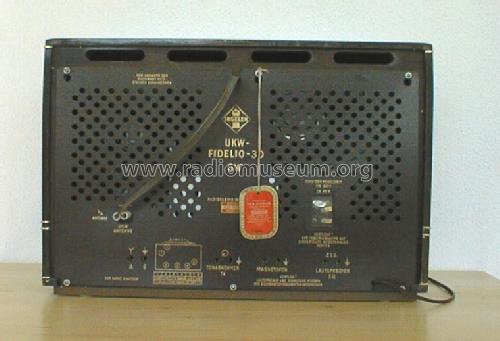

UKW-Fidelio-3D GW; Ingelen, (ID = 57227) Radio UKW-Fidelio-3D GW; Ingelen, (ID = 588951) Radio
UKW-Fidelio-3D GW; Ingelen, (ID = 588955) Radio UKW-Fidelio-3D GW; Ingelen, (ID = 588956) Radio
UKW-Fidelio-3D GW; Ingelen, (ID = 590223) Radio UKW-Fidelio-3D GW; Ingelen, (ID = 1794618) Radio
UKW-Fidelio-3D GW; Ingelen, (ID = 1794619) Radio UKW-Fidelio-3D GW; Ingelen, (ID = 1794620) Radio
Use red slider bar for more.
UKW-Fidelio-3D GW; Ingelen, (ID = 326621) Radio
Ingelen,: UKW-Fidelio-3D GW [Radio] ID = 326621 900x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Fidelio-3D GW, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Bild von Malte Rosenbaum

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UM80 UL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 459 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: UKW-Fidelio-3D GW - Ingelen, Elektrotechnische
Material Wooden case
Dimensions (WHD) 530 x 352 x 234 mm / 20.9 x 13.9 x 9.2 inch
Notes 7 Tasten
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 2'580.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Schematic


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 438 models, 385 with images and 318 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
