AM Clock Radio Travel Pak

AM Clock Radio Travel Pak ; Inno-Hit Innohit (ID = 2305145) Radio AM Clock Radio Travel Pak ; Inno-Hit Innohit (ID = 2305144) Radio
AM Clock Radio Travel Pak ; Inno-Hit Innohit (ID = 2305146) Radio AM Clock Radio Travel Pak ; Inno-Hit Innohit (ID = 2305147) Radio
Use red slider bar for more.
AM Clock Radio Travel Pak ; Inno-Hit Innohit (ID = 2305145) Radio

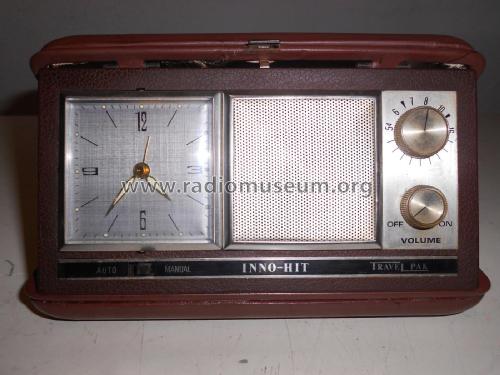

Inno-Hit Innohit: AM Clock Radio Travel Pak [Radio] ID = 2305145 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM Clock Radio Travel Pak, Inno-Hit (Innohit)

Country:  Italy
Manufacturer / Brand:  Inno-Hit (Innohit)
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / A: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: AM Clock Radio Travel Pak - Inno-Hit Innohit
Material Various materials
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 160 x 80 x 26 mm / 6.3 x 3.1 x 1 inch
Notes

controllo volume - antenna interna in ferrite - commutatore auto/manual - custodia rivestita in similpelle richiudibile -

See also:

Net weight (2.2 lb = 1 kg) 0.260 kg / 0 lb 9.2 oz (0.573 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.



All listed radios etc. from Inno-Hit (Innohit)
Here you find 52 models, 51 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
