• Country
• Italy

• Manufacturer / Brand
• Inno-Hit (Innohit)

• Year
• 1995 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 278129

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

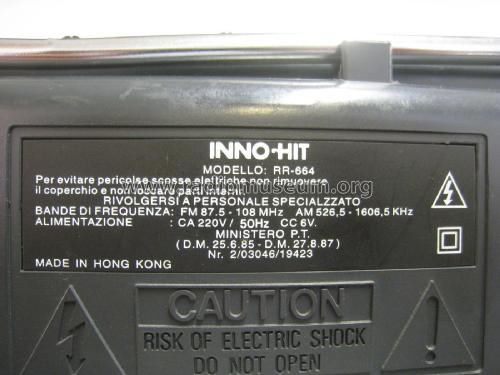

• Model: AM/FM Portable Radio Cassette Recorder RR664 - Inno-Hit Innohit

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 125 x 80 mm / 10.2 x 4.9 x 3.1 inch

• Notes

• Microfono incorporato: uscita per cuffia

  Made in Honk Kong.

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
