CB-292

Inno-Hit (Innohit)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 114560

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 - 13,8 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org

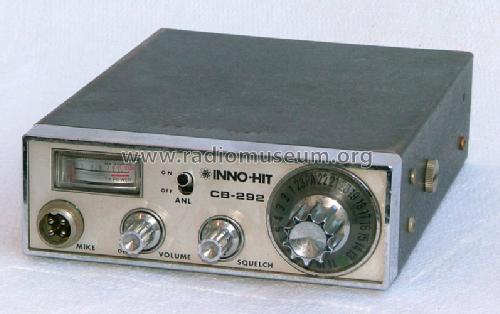

  • Model: CB-292 - Inno-Hit Innohit
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 150 x 50 x 190 mm / 5.9 x 2 x 7.5 inch
  • Notes

  • Crystal controlled 23 channels 27 MHz "Citizen band" transceiver.
    RF output power to the final stage 5 Watt.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Mentioned in
  • - - Data from my own collection
  • Literature/Schematics (1)
  • -- Original prospect or advert ("CD Elettronica", edizioni CD numero 3/123 marzo 1977)
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
