• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94570

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

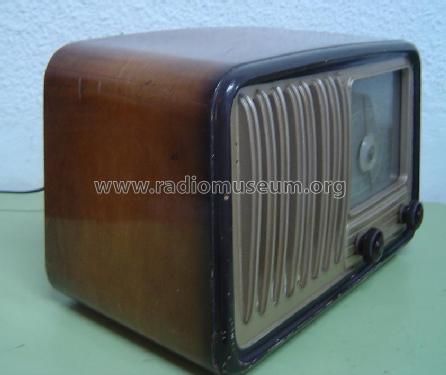

• Model: Ceylon 5304 - Invicta Radio, Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Pts=Spanish Pesetas (1€=166,386 Pts)

• Price in first year of sale
• 1,995.00 Pts

• Mentioned in
• Advert 4th in maker page

• Literature/Schematics (1)

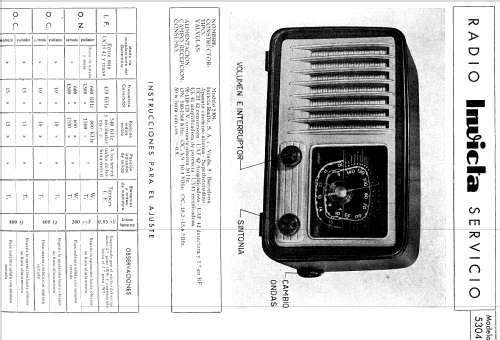

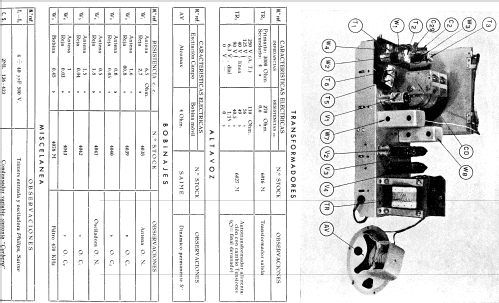

• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
