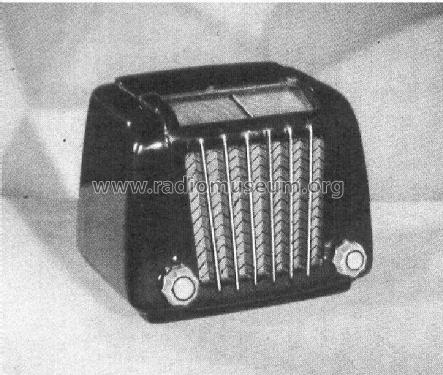

For model H282U, NSF (Nederlandsche Seintoestellen Fabriek); Leuven:
Gerät steht im Bakelitmuseum im Alten Amtshaus Kierspe.

Country:  Belgium
Manufacturer / Brand:  NSF (Nederlandsche Seintoestellen Fabriek); Leuven
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: H282U - NSF Nederlandsche
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 260 x 190 x 160 mm / 10.2 x 7.5 x 6.3 inch
Price in first year of sale 2'650.00 BFr
Source of data -- Original prospect or advert
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from NSF (Nederlandsche Seintoestellen Fabriek); Leuven
Here you find 108 models, 57 with images and 75 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
