• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118294

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84 EZ81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 14 cm = 5.5 inch

• Material
• Wooden case

• from Radiomuseum.org

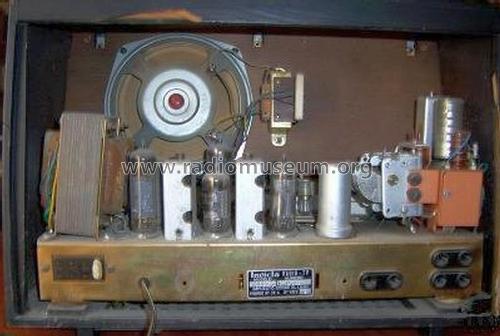

• Model: 6596/E-FM - Invicta Radio, Barcelona

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 380 x 250 x 150 mm / 15 x 9.8 x 5.9 inch

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
