Cádiz 10460/3 RG FM

Cádiz 10460/3 RG FM; Invicta Radio, (ID = 625746) Radio
Cádiz 10460/3 RG FM; Invicta Radio, (ID = 1967761) Radio
Use red slider bar for more.
Cádiz 10460/3 RG FM; Invicta Radio, (ID = 1967761) Radio
Invicta Radio,: Cádiz 10460/3 RG FM [Radio] ID = 1967761 932x1636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cádiz 10460/3 RG FM, Invicta Radio, Barcelona:
Anuncio La Vanguardia Española octubre 1961

Country:  Spain
Manufacturer / Brand:  Invicta Radio, Barcelona
alternative name

Establecimientos Lucarda || Radio Lucarda, S.L
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF93 EABC80 EM81 EBC91 EL84 EL84 EL84 EZ81
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Cádiz 10460/3 RG FM - Invicta Radio, Barcelona
Material Wooden case
Shape Console with Push Buttons.
Notes Lleva 1 altavoz de 10" par graves,1 altavoz de 6" para medios y 1 altavoz de 4" para agudos.
Price in first year of sale 13'965.00 ESP

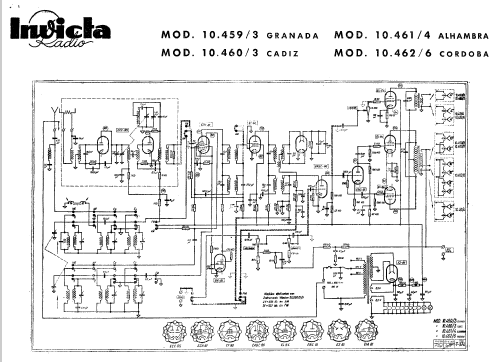

Source of data -- Schematic
Mentioned in Anuncio La Vanguardia Española octubre 1961

Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.



All listed radios etc. from Invicta Radio, Barcelona
Here you find 234 models, 195 with images and 104 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
