Oslo 6447

Oslo 6447; Invicta Radio, (ID = 1438954) Radio Oslo 6447; Invicta Radio, (ID = 607077) Radio
Use red slider bar for more.
Oslo 6447; Invicta Radio, (ID = 1438954) Radio

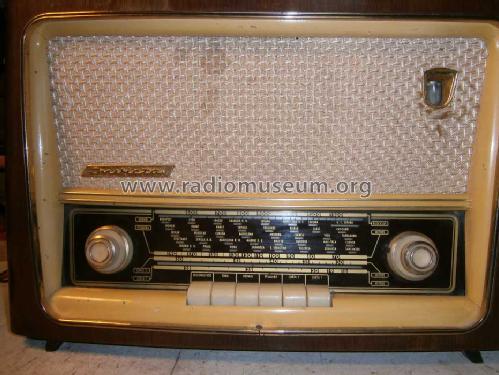

Invicta Radio,: Oslo 6447 [Radio] ID = 1438954 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oslo 6447, Invicta Radio, Barcelona

Country:  Spain
Manufacturer / Brand:  Invicta Radio, Barcelona
alternative name

Establecimientos Lucarda || Radio Lucarda, S.L
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF98 EBC91 EM80 EL84 EZ81
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Oslo 6447 - Invicta Radio, Barcelona
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 330 x 200 mm / 19.7 x 13 x 7.9 inch
Price in first year of sale 3'995.00 ESP
Mentioned in Anuncio La Vanguardia Española enero 1959

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Invicta Radio, Barcelona
Here you find 234 models, 193 with images and 104 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
