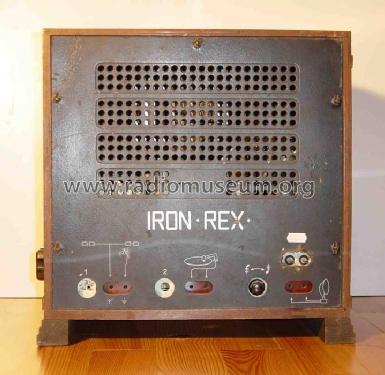

Iron Rex U
Use red slider bar for more.
Iron-Radio, Ing.: Iron Rex U [Radio] ID = 2609796 1400x1492
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1936/1937 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: CK1 CF3 CBC1 CL4 CY1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 124 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 110-222 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Iron Rex U - Iron-Radio, Ing. Galoda a Spol |
| Material | Wooden case |
| Shape | Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges. |
| Notes | Zeiger-Abstimmhilfe |
| External source of data | Erb |
| Source of data | Ceskoslovenske prijimace 1933-1945, Baudys 1947 |
All listed radios etc. from Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice
