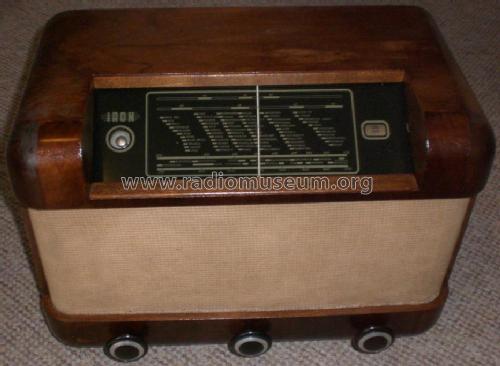

Penta Luxus

Penta Luxus ; Iron-Radio, Ing. (ID = 94286) Radio

Penta Luxus ; Iron-Radio, Ing. (ID = 94288) Radio

Penta Luxus ; Iron-Radio, Ing. (ID = 94287) Radio
Penta Luxus ; Iron-Radio, Ing. (ID = 59087) Radio Penta Luxus ; Iron-Radio, Ing. (ID = 59088) Radio
Penta Luxus ; Iron-Radio, Ing. (ID = 59273) Radio Penta Luxus ; Iron-Radio, Ing. (ID = 95134) Radio
Penta Luxus ; Iron-Radio, Ing. (ID = 1110319) Radio Penta Luxus ; Iron-Radio, Ing. (ID = 1110320) Radio
Penta Luxus ; Iron-Radio, Ing. (ID = 1110321) Radio Penta Luxus ; Iron-Radio, Ing. (ID = 1110322) Radio
Penta Luxus ; Iron-Radio, Ing. (ID = 1397954) Radio Penta Luxus ; Iron-Radio, Ing. (ID = 1397955) Radio
Use red slider bar for more.
Penta Luxus ; Iron-Radio, Ing. (ID = 59087) Radio
Iron-Radio, Ing.: Penta Luxus [Radio] ID = 59087 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Penta Luxus, Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice

Country:  Czechoslovakia
Manufacturer / Brand:  Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF22 ECH4 or ECH21 EF22 EF22 EM4 or EM11 EBL1 or EBL21 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 448 or 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 2.6 W (unknown quality)
from Radiomuseum.org Model: Penta Luxus - Iron-Radio, Ing. Galoda a Spol
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 468 x 334 x 250 mm / 18.4 x 13.1 x 9.8 inch
Notes

During production the IF was changed to 448 kHz

Collectors' prices
Mentioned in Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

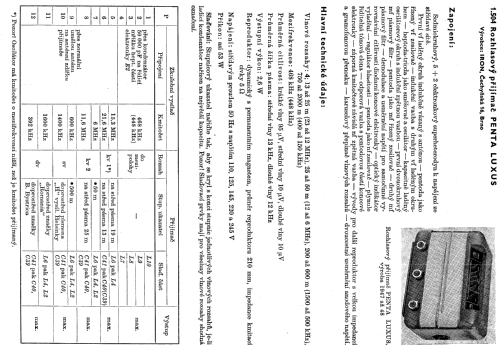

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gabriel Toth. See "Data change" for further contributors.
