AK15
Irradio; Milano: AK15 [Radio] ID = 101741 800x598
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950/1951 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6BE6 6K7GT 6Q7GT 6V6GT 6X5GT |
|---|
| Main principle | Superheterodyne (common); ZF/IF 467 kHz |
|---|---|
| Wave bands | Broadcast plus 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 3 W (unknown quality) |
| from Radiomuseum.org | Model: AK15 - Irradio; Milano |

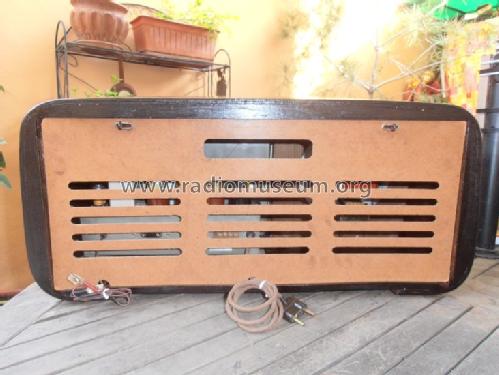

| Material | Wooden case |

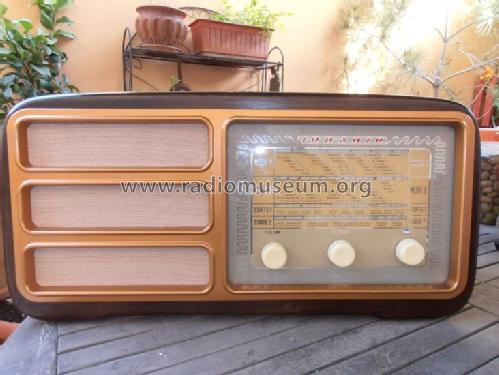

| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 590 x 270 x 220 mm / 23.2 x 10.6 x 8.7 inch |

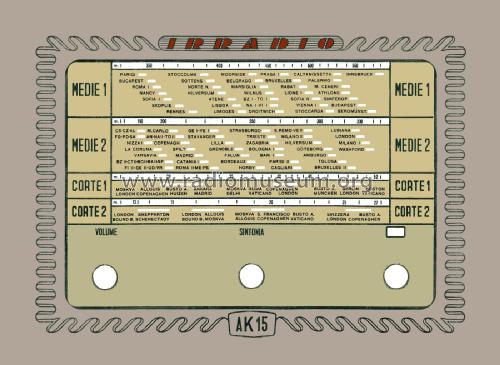

| Notes | 2 gamme OM da 190 a 550 metri; 2 gamme in OC da 13.5 a 50 metri. Ingresso per giradischi. Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere. |
| Net weight (2.2 lb = 1 kg) | 7 kg / 15 lb 6.7 oz (15.419 lb) |
| Source of data | Collezione di Schemi, Scuola Radio Elettra 1953 |
| Mentioned in | Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 111) |
| Literature/Schematics (1) | Riparazioni - Scuola Radio Elettra |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
