BM20

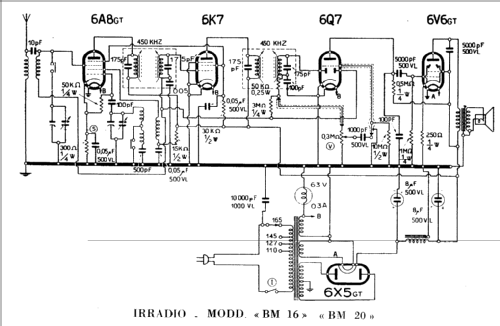

BM20; Irradio; Milano (ID = 228560) Radio

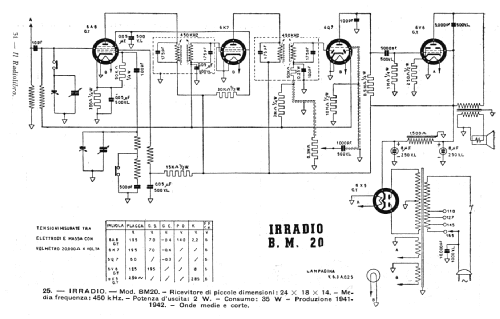

BM20; Irradio; Milano (ID = 255816) Radio

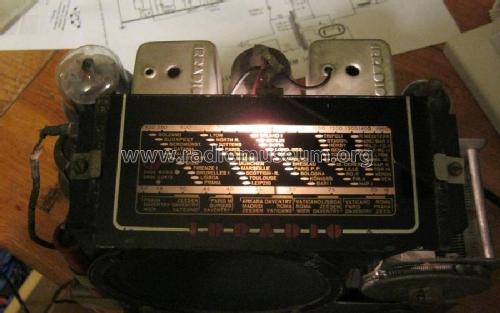

BM20; Irradio; Milano (ID = 1223654) Radio BM20; Irradio; Milano (ID = 1223656) Radio

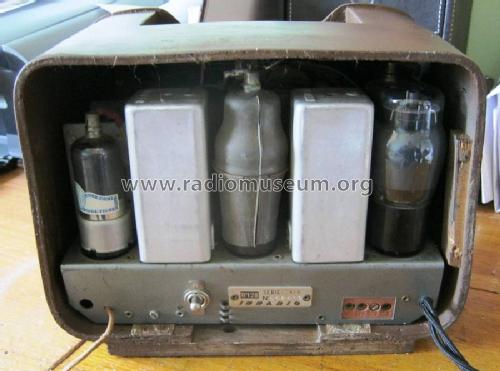

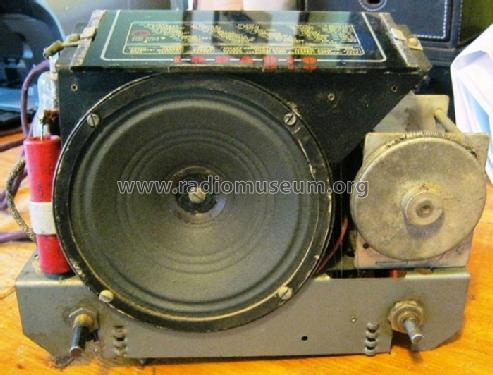

BM20; Irradio; Milano (ID = 1223657) Radio BM20; Irradio; Milano (ID = 1223658) Radio

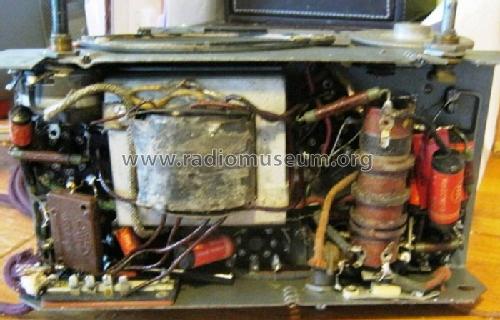

BM20; Irradio; Milano (ID = 1223659) Radio
Use red slider bar for more.

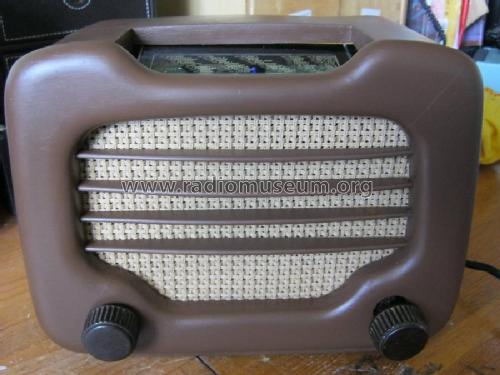

BM20; Irradio; Milano (ID = 1223654) Radio
Irradio; Milano: BM20 [Radio] ID = 1223654 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model BM20, Irradio; Milano

Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6V6 6X5
Main principle Superheterodyne (common); ZF/IF 450 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: BM20 - Irradio; Milano
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 240 x 180 x 140 mm / 9.4 x 7.1 x 5.5 inch
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.

Model page created by Pietro Gallia. See "Data change" for further contributors.



All listed radios etc. from Irradio; Milano
Here you find 256 models, 184 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
