DL46

DL46; Irradio; Milano (ID = 228566) Radio

DL46; Irradio; Milano (ID = 228567) Radio
Use red slider bar for more.

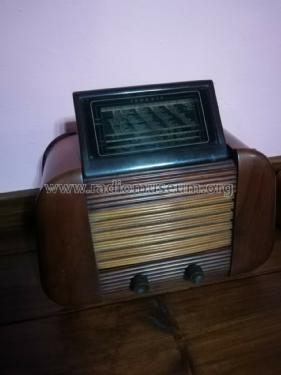

DL46; Irradio; Milano (ID = 228566) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6V6 6X5
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: DL46 - Irradio; Milano
Notes

Onde Medie e tre gamme di onde Corte.
4 wave bands.

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 105-106)
Literature/Schematics (2) Il Radio Libro, (Ravalico) 8.Ed. (Il Radio Libro (D.E. Ravalico) IX edizione 1947)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
