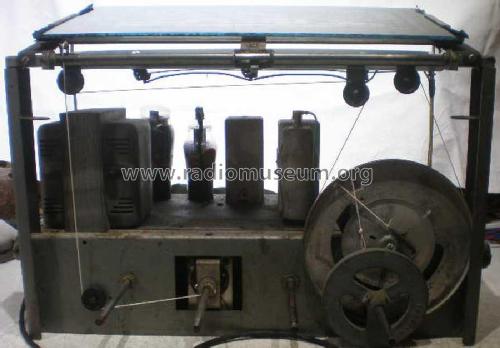

DL516; Irradio; Milano (ID = 1916701) Radio DL516; Irradio; Milano (ID = 1916702) Radio
DL516; Irradio; Milano (ID = 1916704) Radio DL516; Irradio; Milano (ID = 1916705) Radio
Use red slider bar for more.
DL516; Irradio; Milano (ID = 1916696) Radio
Irradio; Milano: DL516 [Radio] ID = 1916696 900x709
Select picture or schematic to display from thumbnails on the right and click for download.
For model DL516, Irradio; Milano:
Per gentile concessione del proprietario Sig.Luca Buselli.

Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6F6 5Y3
schematic requested
Main principle Superheterodyne (common); ZF/IF 450 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: DL516 - Irradio; Milano
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 475 x 360 x 280 mm / 18.7 x 14.2 x 11 inch
Notes

Altoparlante ovale, dimensioni 26 x 15 cm.

Model page created by Fabio Masetti. See "Data change" for further contributors.
