K59
Use red slider bar for more.
Irradio; Milano: K59 [Radio] ID = 1049952 933x609

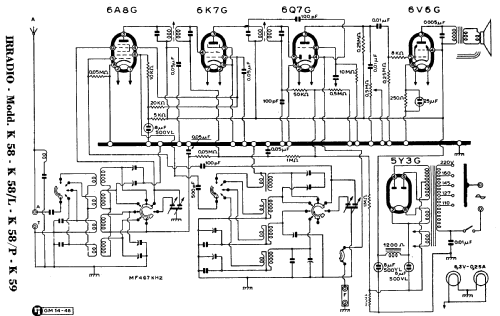

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A8 6K7 6Q7 6V6 5Y3 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 467 kHz |
|---|---|
| Wave bands | Broadcast plus more than 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 145; 165; 220 Volt |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. |
| Power out | |
| from Radiomuseum.org | Model: K59 - Irradio; Milano |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Mentioned in | -- Collector info (Sammler) |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
