Golf 100 Europa 52140125

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71037) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71038) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71041) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71044) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71039) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71040) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71045) Radio

Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71046) Radio
Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 592564) Radio Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 592567) Radio
Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 592568) Radio Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 592565) Radio
Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 2649410) Radio Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 1631100) Radio
Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 29211) Radio Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 71036) Radio
Use red slider bar for more.
Golf 100 Europa 52140125; ITT Schaub-Lorenz (ID = 592564) Radio

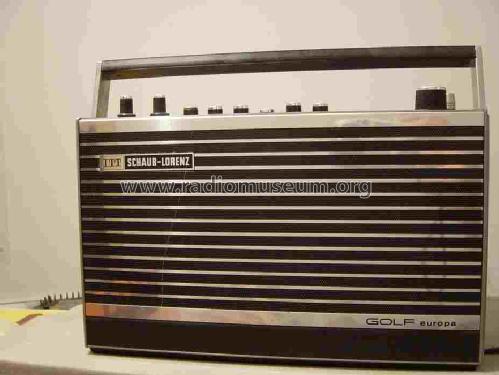

ITT Schaub-Lorenz: Golf 100 Europa 52140125 [Radio] ID = 592564 923x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Golf 100 Europa 52140125, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BC172 BC252 AF106 AF124 AF136 AF137 AF138 AC178 AC179
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Golf 100 Europa 52140125 - ITT Schaub-Lorenz
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 278 x 172 x 89 mm / 10.9 x 6.8 x 3.5 inch
Notes Netzbetrieb mit zusätzlichem Netzteil NG3000 möglich.
Gehäuse: schwarz. Siehe auch hier in Nussbaum-Dekor.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 2, Ernst Erb
