• Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 217631

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Combat - ITT-KB; Foots Cray, Kent; ITT
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 122 x 165 x 60 mm / 4.8 x 6.5 x 2.4 inch
  • Notes

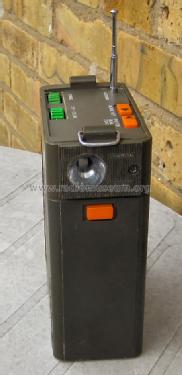

  • Working action toy radio, with "Photon Beam" (torch). Radio is powered by 4 x C cell batteries. On the back there are 2 sockets one marked "Talk Through" which is a microphone socket so the radio acts as an amplifier and another socket with what looks like a Telephone handset symbol which is in fact the headphone socket. Wave change switch is on the back, and it says "Made by ITT".

    Example seen with label "A Quality product from ITT Made In Malaysia"

  • Source of data
  • -- Schematic
