Junior Deluxe

Junior Deluxe ; ITT-KB; Foots Cray, (ID = 2211831) Radio Junior Deluxe ; ITT-KB; Foots Cray, (ID = 2211832) Radio
Junior Deluxe ; ITT-KB; Foots Cray, (ID = 2211833) Radio
Use red slider bar for more.

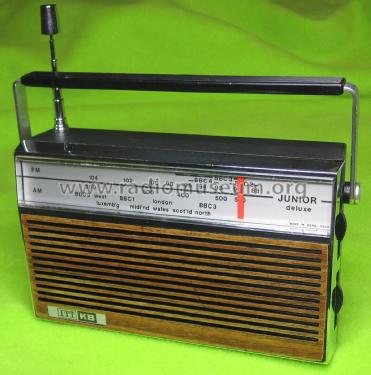

Junior Deluxe ; ITT-KB; Foots Cray, (ID = 2211831) Radio
ITT-KB; Foots Cray,: Junior Deluxe [Radio] ID = 2211831 1374x1089
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior Deluxe, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes):
eBay item number:263421476660

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: CS9016 CS9018 CS9018 CS1312 CS9018 CS1312 BT1 CS1312 2SB364 2SD104
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Junior Deluxe - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 157 x 97 x 45 mm / 6.2 x 3.8 x 1.8 inch
Notes

see also ITT Schaub-Lorenz Junior deluxe

Dates and prices from Radio! Radio! 3rd Edition 1996

FM Coverage 87.5 to 104 MHz.

Power supply 4 x 1.5v AA batteries

Price in first year of sale 10.65 GBP
Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (1975/1976, p.550)

Model page created by Mike Edwards. See "Data change" for further contributors.
