Junior ML1

Junior ML1; ITT-KB; Foots Cray, (ID = 2299542) Radio

Junior ML1; ITT-KB; Foots Cray, (ID = 2299543) Radio
Use red slider bar for more.
Junior ML1; ITT-KB; Foots Cray, (ID = 2299542) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: CS9018 CS1312 CS9018 CS1312 BT1 CS1312 2SB364 2SD104
Main principle Super-Heterodyne (Super in general); ZF/IF 452 or 460 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Junior ML1 - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 95 x 45 mm / 6.1 x 3.7 x 1.8 inch
Notes

Socket for earphone. Similar to the ITT KB Junior ML2 model, but with slightly wider MW coverage, 510kHz to 1620kHz

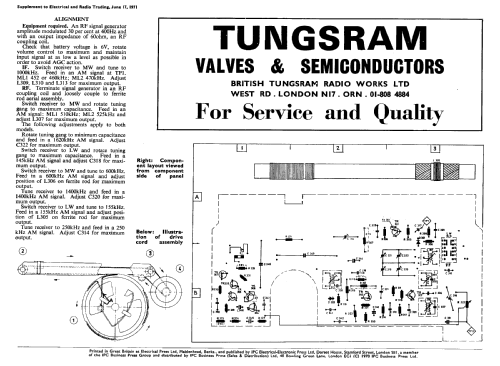

Mentioned in ERT Service chart 1796 dated June 17 1971

Model page created by Howard Craven. See "Data change" for further contributors.
