Super 4 KR614

Super 4 KR614; ITT-KB; Foots Cray, (ID = 1678679) Radio Super 4 KR614; ITT-KB; Foots Cray, (ID = 1678681) Radio
Super 4 KR614; ITT-KB; Foots Cray, (ID = 1678682) Radio Super 4 KR614; ITT-KB; Foots Cray, (ID = 1678684) Radio
Super 4 KR614; ITT-KB; Foots Cray, (ID = 1678754) Radio
Use red slider bar for more.

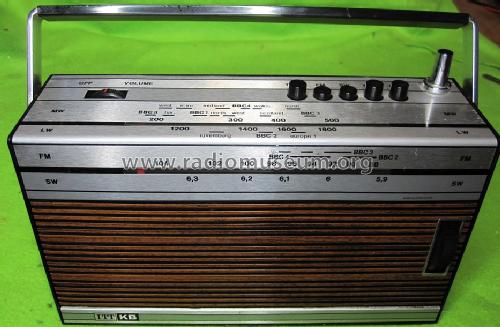

Super 4 KR614; ITT-KB; Foots Cray, (ID = 1678679) Radio
ITT-KB; Foots Cray,: Super 4 KR614 [Radio] ID = 1678679 933x612
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 4 KR614, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: CS1508 CS1509 CS1509 M193 CS1509 CS1312 BT1 CS1506 AC117 AC175
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Super 4 KR614 - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 217 x 125 x 71 mm / 8.5 x 4.9 x 2.8 inch
Notes

This radio could easily be confused with the ITT-KB KR610

Rich powerfull tone from this relatively small transistor radio, making it sound like one twice the size.

Price in first year of sale 16.90 UK £
Mentioned in Radio! Radio! (Date and price from Radio Radio, (Hill), page 260)

Model page created by Mike Edwards. See "Data change" for further contributors.
