Volna {Волна} Bakelite

Volna {Волна} ; Izhevsk Radio Works (ID = 181883) Radio

Volna {Волна} ; Izhevsk Radio Works (ID = 181885) Radio
Volna {Волна} ; Izhevsk Radio Works (ID = 181877) Radio Volna {Волна} ; Izhevsk Radio Works (ID = 181879) Radio
Volna {Волна} ; Izhevsk Radio Works (ID = 181880) Radio Volna {Волна} ; Izhevsk Radio Works (ID = 181878) Radio
Volna {Волна} ; Izhevsk Radio Works (ID = 181881) Radio Volna {Волна} ; Izhevsk Radio Works (ID = 181882) Radio
Use red slider bar for more.
Volna {Волна} ; Izhevsk Radio Works (ID = 181877) Radio
Izhevsk Radio Works: Volna {Волна} [Radio] ID = 181877 574x433
Select picture or schematic to display from thumbnails on the right and click for download.

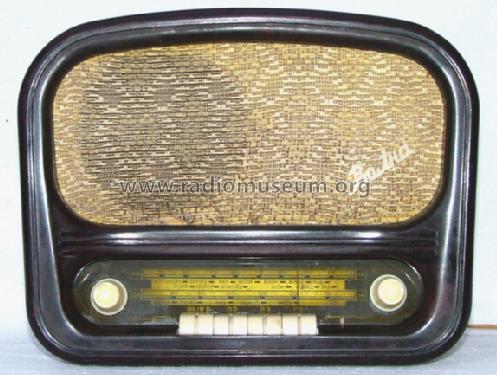

For model Volna {Волна} Bakelite, Izhevsk Radio Works:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Izhevsk Radio Works
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 6И1П 6И1П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Volna {Волна} [Bakelite] - Izhevsk Radio Works
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 270 x 215 x 145 inch / 6858 x 5461 x 3683 mm
Notes Two case variants - bakelite and wood. Grand prix and gold medal in Brussels World Exhibition 1958.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 28.00 RUR
Source of data -- Schematic
Mentioned in E.A.Levitin "Radio sets" Moscow 1960

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Izhevsk Radio Works
Here you find 14 models, 13 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Izhevsk Radio Works: Volna {Волна}
Threads: 1 | Posts: 3
Hits: 1365     Replies: 2
izhevsk: Volna {Волна}
Peter Hughes
02.Oct.13
  1

I have one of these radios and the cabinet is not of bakelite or wood, but metal.  I think it must be cast aluminium.



Peter

Gabriel Toth
02.Oct.13
  2

Based on latest user manual of production from end of 1958, beginning 1959, this model was produced in 3 different case variants: bakelit, wooden and silumin, what is aluminium alloy partially with silicon.

Gabriel

Peter Hughes
02.Oct.13
  3 Very interesting. Many thanks for your reply, Gabriel. Peter

Izhevsk Radio Works: Volna {Волна}
End of forum contributions about this model
