• Country
• Denmark

• Manufacturer / Brand
• Johnsen, Wilhelm; Kopenhagen

• Year
• 1932 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248479

• • Brand: Always; Kopenhagen

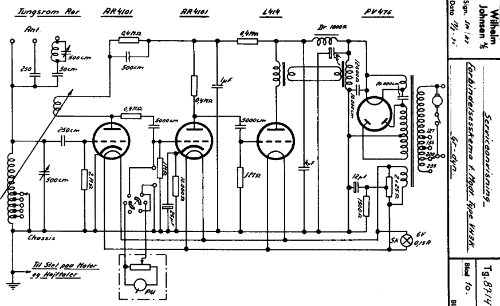

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AR4101 E438 B409 1805

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 127-235 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Always console - Johnsen, Wilhelm; Kopenhagen

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• There was also an Always table model without grammo.

• Author
• Model page created by Jacques Denys. See "Data change" for further contributors.
