Königsfeld 52 1152UW2 ohne mag. Auge
Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.
- Country
- Germany
- Manufacturer / Brand
- Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303113
-
- alternative name: Elektro-Apparate-Fabrik
- Brand: EAF
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; Reflex
- Tuned circuits
- 6 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Königsfeld 52 1152UW2 [ohne mag. Auge] - Jotha-Radio, El.-App.-Fabrik
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 400 x 300 mm / 23.6 x 15.7 x 11.8 inch
- Notes
-
Die hier gennanten technischen Daten sind vom Modell 1152UW3K übernommen.
- Price in first year of sale
- 248.00 DM
- Mentioned in
- Funkschau (19/1951, Seite IX)
- Literature/Schematics (1)

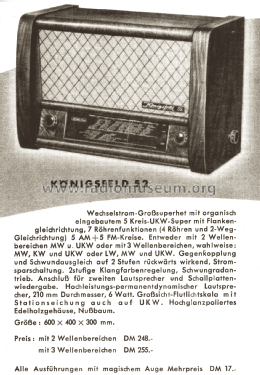

- - - Manufacturers Literature (Sondermitteilung 100.000 Geräte, 14.05.1952)
