Liliput 111W MW, magnetischer LS

Liliput 111W; Jotha-Radio, El.-App (ID = 2375057) Radio

Liliput 111W; Jotha-Radio, El.-App (ID = 513673) Radio

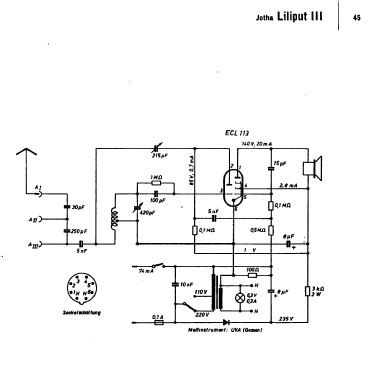

Liliput 111W; Jotha-Radio, El.-App (ID = 2377524) Radio

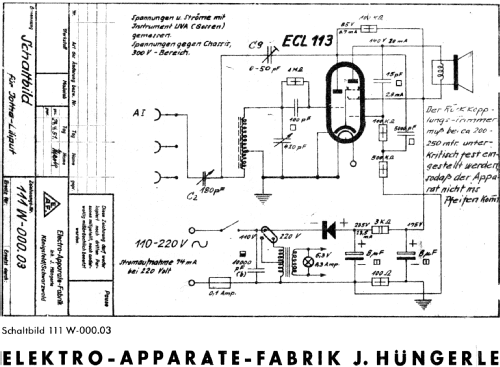

Liliput 111W; Jotha-Radio, El.-App (ID = 2502625) Radio

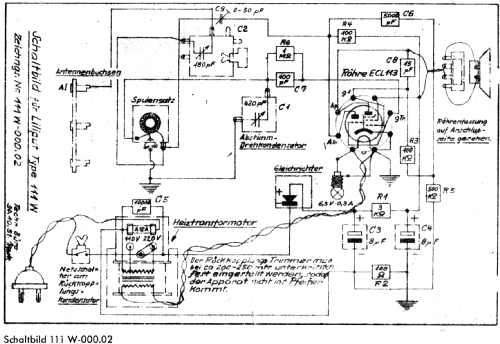

Liliput 111W; Jotha-Radio, El.-App (ID = 2502626) Radio

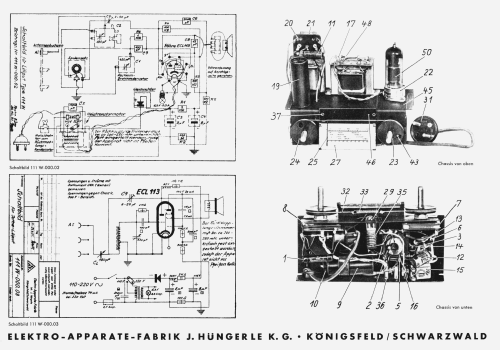

Liliput 111W; Jotha-Radio, El.-App (ID = 2502952) Radio
Liliput 111W; Jotha-Radio, El.-App (ID = 1632412) Radio Liliput 111W; Jotha-Radio, El.-App (ID = 21704) Radio
Liliput 111W; Jotha-Radio, El.-App (ID = 1190730) Radio Liliput 111W; Jotha-Radio, El.-App (ID = 514200) Radio
Liliput 111W; Jotha-Radio, El.-App (ID = 1190729) Radio Liliput 111W; Jotha-Radio, El.-App (ID = 42842) Radio
Liliput 111W; Jotha-Radio, El.-App (ID = 1384952) Radio Liliput 111W; Jotha-Radio, El.-App (ID = 1442407) Radio
Liliput 111W; Jotha-Radio, El.-App (ID = 1632413) Radio
Use red slider bar for more.
Liliput 111W; Jotha-Radio, El.-App (ID = 1632412) Radio
Jotha-Radio, El.-App: Liliput 111W [Radio] ID = 1632412 800x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Liliput 111W MW, magnetischer LS, Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.

Country:  Germany
Manufacturer / Brand:  Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.
alternative name

Elektro-Apparate-Fabrik
Brand
EAF
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: ECL113
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Liliput 111W [MW, magnetischer LS] - Jotha-Radio, El.-App.-Fabrik
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 160 x 140 x 90 mm / 6.3 x 5.5 x 3.5 inch
Notes

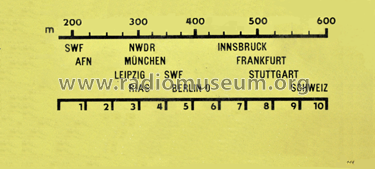

Mittelwellenbereich von 180 bis 550 m. Beleuchtete Linearskala.

Auch mit permanent-dynamischem Lautsprecher, siehe Liliput.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 45.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (5119)
Literature/Schematics (1) -- Original prospect or advert

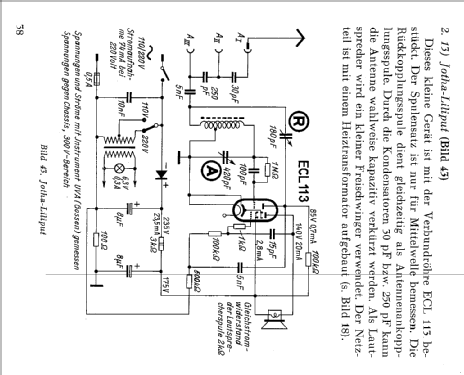

Literature/Schematics (2) Lange, Schaltungen der Funkindustrie (Band VI (6))
