• Country
• Switzerland

• Manufacturer / Brand
• Jura; La Chaux-de-Fonds (eigentlich Zürich)

• Year
• 1942–1944

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12131

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145;200; 220; 245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Bakelite case

• from Radiomuseum.org

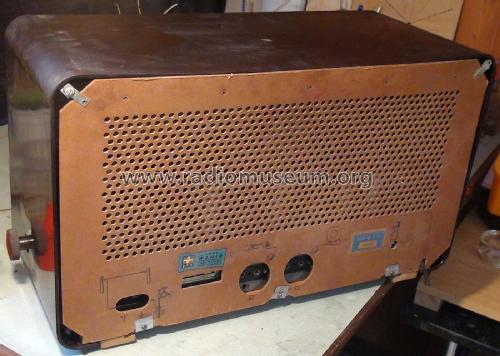

• Model: J124A - Jura; La Chaux-de-Fonds

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 528 x 305 x 227 mm / 20.8 x 12 x 8.9 inch

• Notes

• Sch=442A; Marken für HF-TR auf der Skala. Siehe auch das Modell J124TR mit Telefonrundspruch.

• Price in first year of sale
• 398.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.
