Bali

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9545

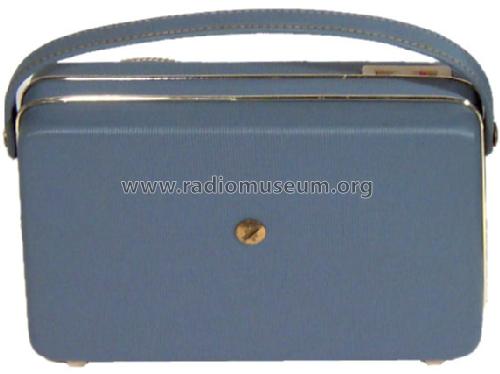

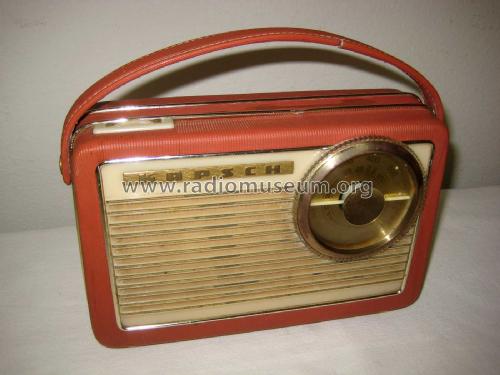

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC75 OC71 OC72 OC72

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Bali - Kapsch & Söhne KS, Telephon-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 140 x 68 mm / 8.7 x 5.5 x 2.7 inch

• Notes
• .

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Price in first year of sale
• 1,250.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 122/2004, S.7, Kurzbeschreibung)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
