Dirigent G

Dirigent G ; Kapsch & Söhne KS, (ID = 9221) Radio
Dirigent G ; Kapsch & Söhne KS, (ID = 27786) Radio
Use red slider bar for more.
Dirigent G ; Kapsch & Söhne KS, (ID = 27786) Radio
Kapsch & Söhne KS,: Dirigent G [Radio] ID = 27786 506x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dirigent G, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CK1 CF7 CB2 CL4 EUVI or EUXX
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dirigent G - Kapsch & Söhne KS, Telephon-
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes ZF=128,5;Abst.Anz.;GW=CY1
Price in first year of sale 418.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

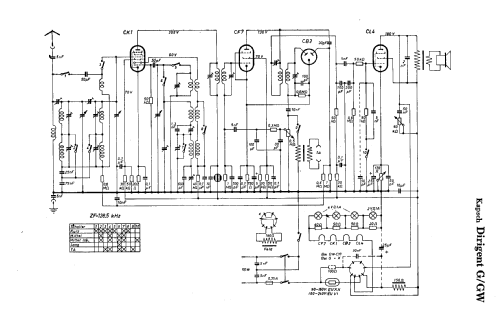

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Museums Bote, Österr. (Heft 110/2002, S.5, Kurzbeschreibung)
