Juwel 51W

Juwel 51W; Kapsch & Söhne KS, (ID = 684477) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 9299) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 1861913) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 1861948) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 1861949) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 1861950) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 1861951) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 1861952) Radio

Juwel 51W; Kapsch & Söhne KS, (ID = 2013536) Radio
Juwel 51W; Kapsch & Söhne KS, (ID = 1481084) Radio Juwel 51W; Kapsch & Söhne KS, (ID = 137745) Radio

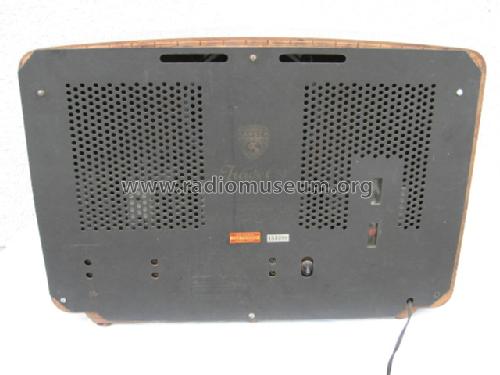

Juwel 51W; Kapsch & Söhne KS, (ID = 137748) Radio Juwel 51W; Kapsch & Söhne KS, (ID = 137747) Radio
Juwel 51W; Kapsch & Söhne KS, (ID = 216823) Radio Juwel 51W; Kapsch & Söhne KS, (ID = 1481085) Radio
Juwel 51W; Kapsch & Söhne KS, (ID = 1481086) Radio Juwel 51W; Kapsch & Söhne KS, (ID = 1758006) Radio
Juwel 51W; Kapsch & Söhne KS, (ID = 1758007) Radio
Use red slider bar for more.
Juwel 51W; Kapsch & Söhne KS, (ID = 1481084) Radio
Kapsch & Söhne KS,: Juwel 51W [Radio] ID = 1481084 800x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model Juwel 51W, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:

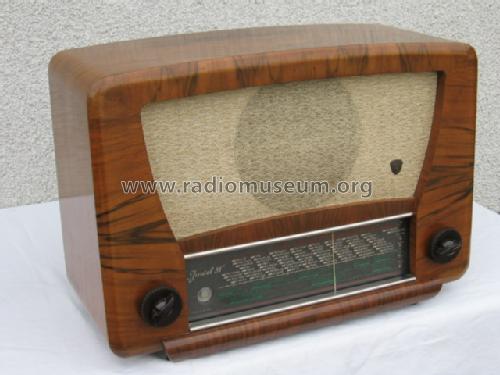

Kapsch Juwel 51W Chassis No. 149281 Sammlung Denoth

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 ECH21 ECH21 EBL21 EM4 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 180; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Juwel 51W - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 400 x 275 mm / 22.4 x 15.7 x 10.8 inch
Notes Vorbereitet für UKW-Einbaugerät mit EF42 und EF41.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 1'720.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Museums Bote, Österr. (Heft 117/2003, S.9, Gerätebeschreibung)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
