• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1966–1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73674

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF89 EBC81 EL84 EM84

• Number of Transistors
• 2

• Semiconductors
• AF106 AF125

• Main principle
• Superheterodyne (common); ZF/IF 480/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220/240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

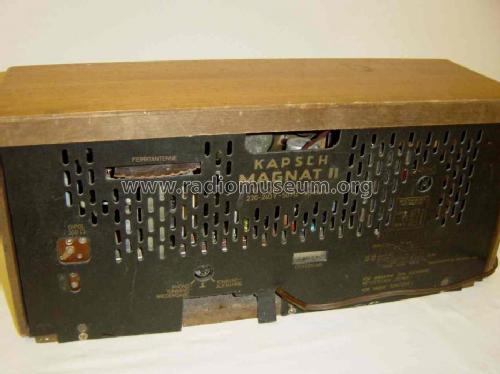

• Model: Magnat II - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 230 x 190 mm / 20.5 x 9.1 x 7.5 inch

• Notes

• Transistoren AF106 und AF125 im UKW-Tuner.

  Schwenkbare Ferritantenne
  Getrennte Bass- und Höheneinstellung
  AFC für UKW - schaltbar

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Price in first year of sale
• 1,995.00 ATS

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
