Orchestra ; Kapsch & Söhne KS, (ID = 38398) Radio
Kapsch & Söhne KS,: Orchestra [Radio] ID = 38398 640x480
Select picture or schematic to display from thumbnails on the right and click for download.

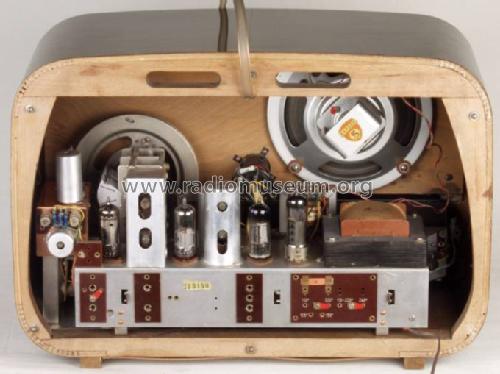

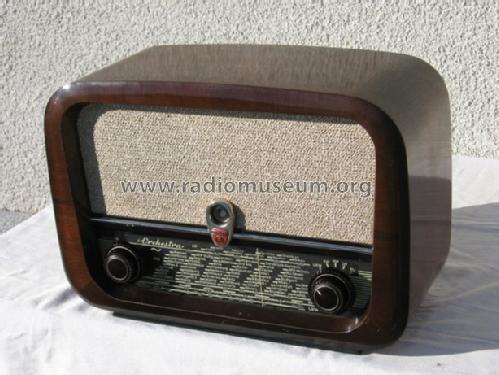

For model Orchestra, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Eigene Sammlung

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BA6 EC92 ECH81 EF85 EM34 EABC80 EL41 EZ80
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Orchestra - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 455 x 320 x 210 mm / 17.9 x 12.6 x 8.3 inch
Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)
Price in first year of sale 1'795.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in Museums Bote, Österr. (Heft 119-120/2003, S.8, Kurzbeschreibung)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
