• Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 81130

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

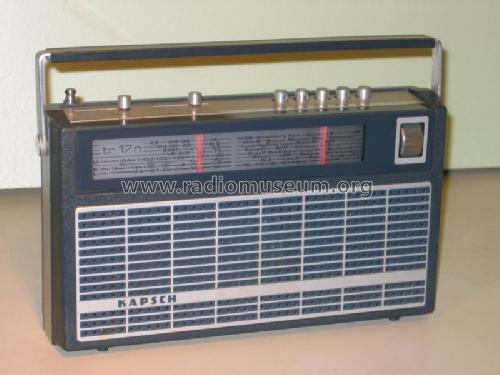

  • Model: Portable TR17n - Kapsch & Söhne KS, Telephon-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 160 x 70 mm / 11 x 6.3 x 2.8 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.425 kg / 3 lb 2.2 oz (3.139 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
