For model Progress 165W, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:

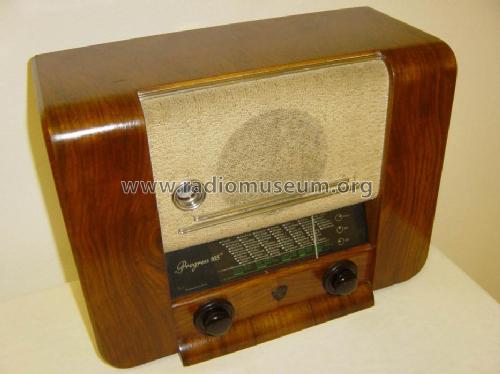

Kapsch Progress 165W

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ11 EM4
Main principle Superheterodyne (common); ZF/IF 457 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Progress 165W - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 340 x 210 mm / 17.9 x 13.4 x 8.3 inch
Notes Ch.=Progress W
Price in first year of sale 1'270.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Museums Bote, Österr. (Heft 117/2003, S.10, Gerätebeschreibung)
