Progress W ; Kapsch & Söhne KS, (ID = 1557711) Radio

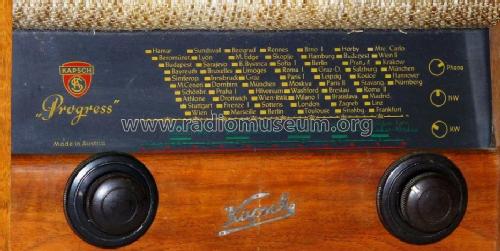

Kapsch & Söhne KS,: Progress W [Radio] ID = 1557711 876x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Progress W, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ11 EM4
Main principle Superheterodyne (common); ZF/IF 457 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Progress W - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Ch.=165W
Price in first year of sale 1'125.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

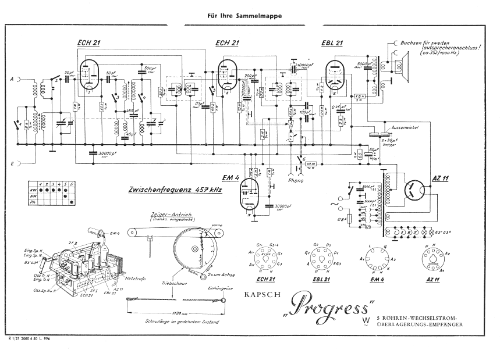

Circuit diagram reference Lange-Nowisch
Mentioned in Museums Bote, Österr. (Heft 117/2003, S.4, Gerätebeschreibung)


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
