Star W Quer

Star W Quer; Kapsch & Söhne KS, (ID = 605581) Radio

Star W Quer; Kapsch & Söhne KS, (ID = 340768) Radio

Star W Quer; Kapsch & Söhne KS, (ID = 9259) Radio
Star W Quer; Kapsch & Söhne KS, (ID = 73976) Radio Star W Quer; Kapsch & Söhne KS, (ID = 121950) Radio
Star W Quer; Kapsch & Söhne KS, (ID = 121951) Radio
Use red slider bar for more.

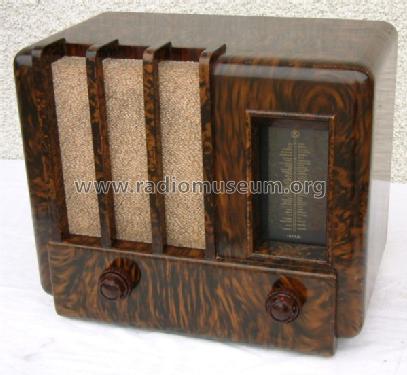

Star W Quer; Kapsch & Söhne KS, (ID = 73976) Radio
Kapsch & Söhne KS,: Star W Quer [Radio] ID = 73976 600x552
Select picture or schematic to display from thumbnails on the right and click for download.
For model Star W Quer, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Type Star W Querbau

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK2 AF7 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128,5 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Star W Quer - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Der ZF-Verstärker (AF7) wird in Reflexschaltung als erste NF-Stufe verwendet.

External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Museums Bote, Österr. (Heft 110/2002, S.6, Kurzbeschreibung)
