Triumph 52A

Triumph 52A; Kapsch & Söhne KS, (ID = 9307) Radio

Triumph 52A; Kapsch & Söhne KS, (ID = 609940) Radio

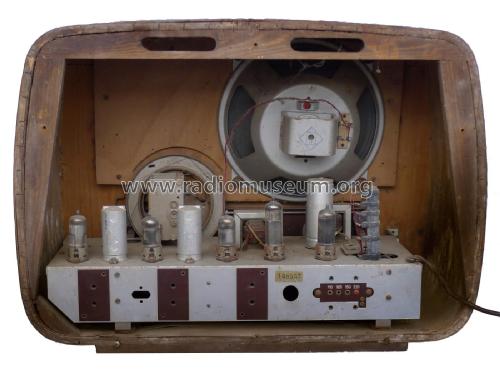

Triumph 52A; Kapsch & Söhne KS, (ID = 2576066) Radio Triumph 52A; Kapsch & Söhne KS, (ID = 2480443) Radio
Triumph 52A; Kapsch & Söhne KS, (ID = 2366011) Radio Triumph 52A; Kapsch & Söhne KS, (ID = 2366012) Radio
Triumph 52A; Kapsch & Söhne KS, (ID = 608532) Radio Triumph 52A; Kapsch & Söhne KS, (ID = 608533) Radio
Triumph 52A; Kapsch & Söhne KS, (ID = 1355007) Radio Triumph 52A; Kapsch & Söhne KS, (ID = 1355008) Radio
Triumph 52A; Kapsch & Söhne KS, (ID = 1355009) Radio Triumph 52A; Kapsch & Söhne KS, (ID = 1355010) Radio
Use red slider bar for more.
Triumph 52A; Kapsch & Söhne KS, (ID = 2576066) Radio
Kapsch & Söhne KS,: Triumph 52A [Radio] ID = 2576066 1000x716
Select picture or schematic to display from thumbnails on the right and click for download.
For model Triumph 52A, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UAF42 UL41 UM4 UY41 NTC-Resistor
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Triumph 52A - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 370 x 280 mm / 20.5 x 14.6 x 11 inch
Notes Vorbereitet für UKW-Einbaugerät mit UF42 und UAF42.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 1'950.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Museums Bote, Österr. (Heft 118/2003, S.7, Gerätebeschreibung)
Literature/Schematics (1) -- Original-techn. papers.
