• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1969/1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73699

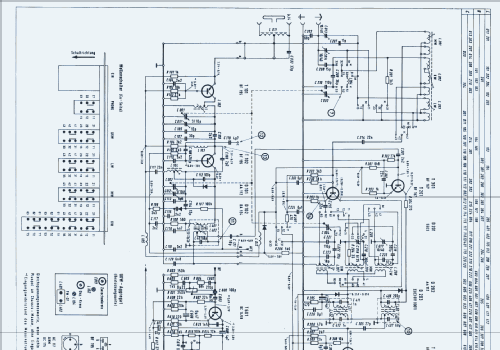

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BF195 BF195 BF167 BF167 BF167 BF167 BC149 BC149 BC158 AC117 AC175 AD155 ANM BY164

• Main principle
• Superheterodyne (common); ZF/IF 462/10700 kHz; 6 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

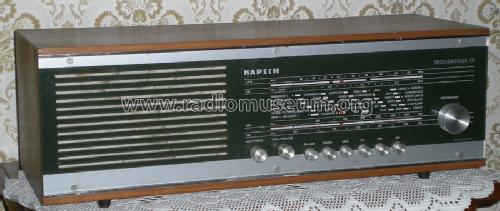

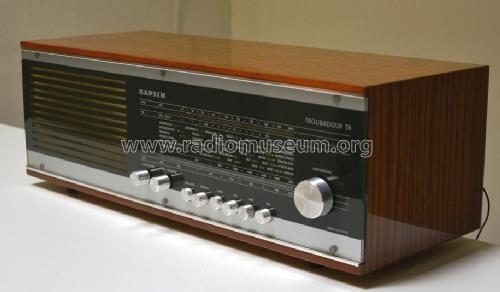

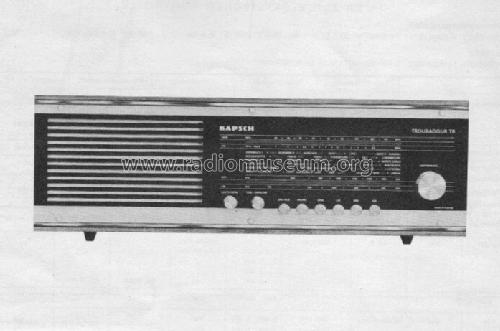

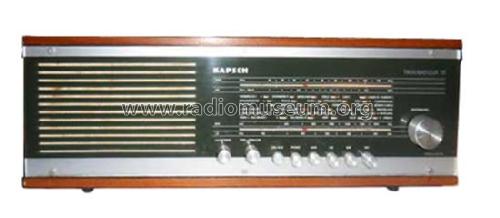

• Model: Troubadour TR - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 165 x 195 mm / 18.9 x 6.5 x 7.7 inch

• Notes

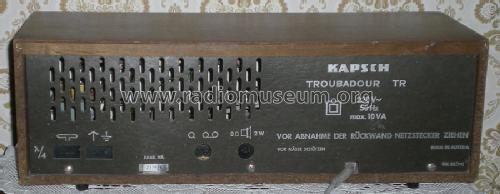

• • Anschlüsse:
    • Phono/Tonband-Wiedergabe und Tonband-Aufnahme (DIN)
    • LS Anschluss schaltbar (DIN)
    • Antenne

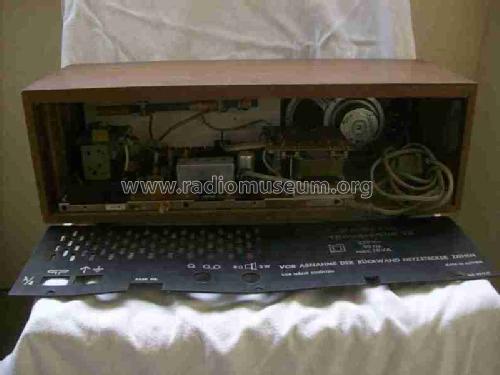

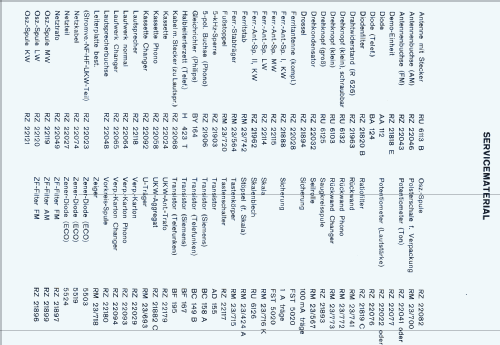

  • wichtige Bauteile:
    • Skalenlämpchen 18V 0,1A

  Siehe auch:

  • Troubadour TR Phono dieses Modell mit Plattenspieler
  • Troubadour TR Changer dieses Modell mit Plattenwechsler

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
