Viennastar 1025 61

Viennastar 1025; Kapsch & Söhne KS, (ID = 146598) Television

Viennastar 1025; Kapsch & Söhne KS, (ID = 146599) Television

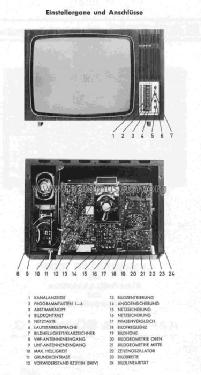

Viennastar 1025; Kapsch & Söhne KS, (ID = 141083) Television Viennastar 1025; Kapsch & Söhne KS, (ID = 141084) Television
Use red slider bar for more.
Viennastar 1025; Kapsch & Söhne KS, (ID = 141083) Television
Kapsch & Söhne KS,: Viennastar 1025 [Television] ID = 141083 908x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viennastar 1025 61, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 11: PCF201 PCF200 PFL200 PCH200 PL84 DY802 PY88 PL504 PCF802 PCL805 A61-120W
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220/240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Viennastar 1025 [61] - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Fernsehbänder: VHF Band I+III, UHF Band IV/V. 61-cm-Bildröhre.
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
