Viennastar 1770

Viennastar 1770; Kapsch & Söhne KS, (ID = 147956) Television

Viennastar 1770; Kapsch & Söhne KS, (ID = 147957) Television

Viennastar 1770; Kapsch & Söhne KS, (ID = 731149) Television
Viennastar 1770; Kapsch & Söhne KS, (ID = 809143) Television Viennastar 1770; Kapsch & Söhne KS, (ID = 731142) Television
Use red slider bar for more.
Viennastar 1770; Kapsch & Söhne KS, (ID = 809143) Television
Kapsch & Söhne KS,: Viennastar 1770 [Television] ID = 809143 597x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viennastar 1770, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:

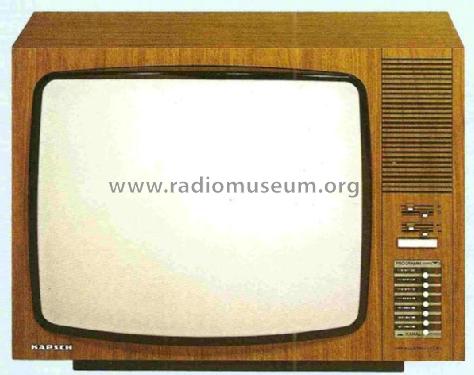

Detailbild aus nachstehender Prospektseite, hochgeladen von Herrn Peter Roggenhofer.

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 6: PL95 PCL805 PCF802 PL504 PY88 A61-120W/2
Semiconductors (the count is only for transistors) 15:
Main principle Superheterodyne (common)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Viennastar 1770 - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 680 x 490 x 390 mm / 26.8 x 19.3 x 15.4 inch
Notes Empfangsbereiche: VHF Band I, 4 Kanäle, VHF Band III, 8 Kanäle, UHF-Band IV/V, 48 Kanäle. 7 Programmwahltasten. Antennenanschluß: Koaxial-Buchse 60 Ohm. Bildschirmdiagonale 61 cm. Ovallautsprecher 10 x 15 cm. 30 Dioden und Gleichrichter, 1 IC. Regelorgane: Schieberegler für Kontrast, Helligkeit, Lautstärke und Tonblende.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
