K1313

K1313; Kennedy marca / (ID = 355407) Radio
Use red slider bar for more.
K1313; Kennedy marca / (ID = 355407) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Kennedy (marca / brand); ved. le note / see text
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T26 ECH81 12BA6 or 12P1 6T8 or 6TD31 EM80 35F4 50R4
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: K1313 - Kennedy marca / brand; ved. le

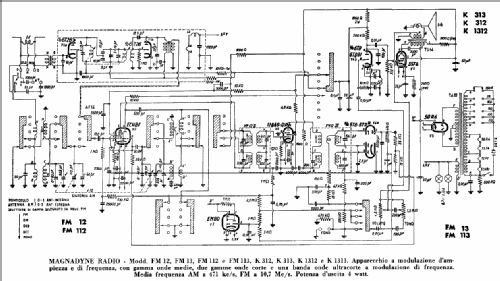

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Kennedy (marca / brand); ved. le note / see text
Here you find 112 models, 73 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
