K350

K350; Kennedy marca / (ID = 1461036) Radio
K350; Kennedy marca / (ID = 607158) Radio
Use red slider bar for more.
K350; Kennedy marca / (ID = 607158) Radio

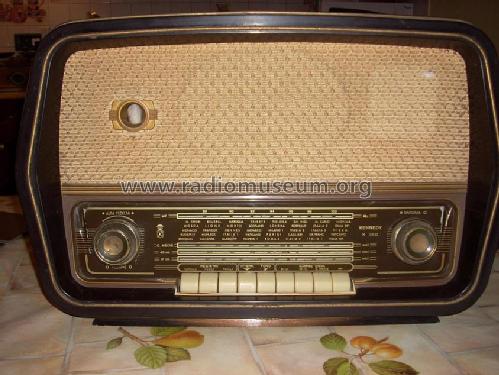

Kennedy marca /: K350 [Radio] ID = 607158 845x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model K350, Kennedy (marca / brand); ved. le note / see text:
Foto per cortesia di un ospite

Country:  Italy
Manufacturer / Brand:  Kennedy (marca / brand); ved. le note / see text
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6T26 12E4 6TD32 50RP1 EM81 35F6
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: K350 - Kennedy marca / brand; ved. le
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 320 x 230 mm / 20.1 x 12.6 x 9.1 inch
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Kennedy (marca / brand); ved. le note / see text
Here you find 112 models, 73 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
