• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 113772

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 471 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

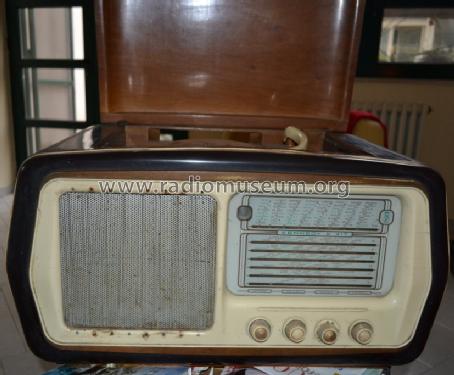

  • Model: K417 - Kennedy marca / brand; ved. le
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Una gamma onde medie e sei bande allargate in onde corte. Consumo 40 W.
  • Literature/Schematics (1)
  • D.E.Ravalico, Il Radio Libro, 17° Edizione, 1960, Hoepli
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
