K560

K560; Kennedy marca / (ID = 295544) Radio
K560; Kennedy marca / (ID = 298146) Radio K560; Kennedy marca / (ID = 298147) Radio

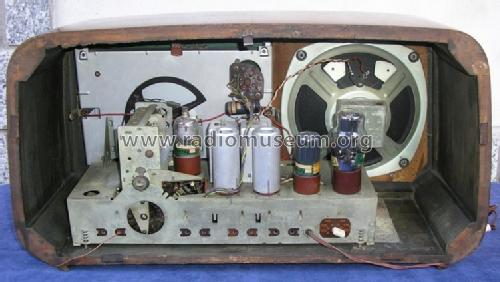

K560; Kennedy marca / (ID = 298148) Radio K560; Kennedy marca / (ID = 298149) Radio

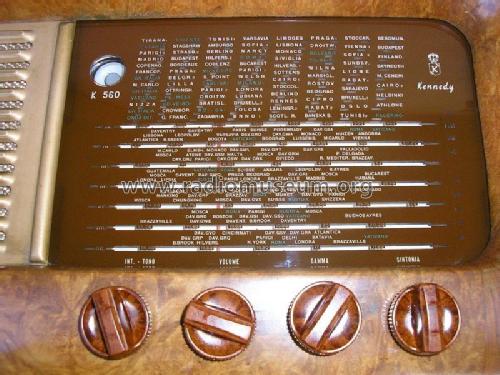

K560; Kennedy marca / (ID = 298150) Radio
Use red slider bar for more.
K560; Kennedy marca / (ID = 298146) Radio
Kennedy marca /: K560 [Radio] ID = 298146 725x428
Select picture or schematic to display from thumbnails on the right and click for download.
For model K560, Kennedy (marca / brand); ved. le note / see text:
Foto per cortesia del venditore ebay gabri.g (oggetto # 290082503314)

Country:  Italy
Manufacturer / Brand:  Kennedy (marca / brand); ved. le note / see text
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6TE8 6SK7 6SQ7 6V6 6E5 5Y3
Main principle Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: K560 - Kennedy marca / brand; ved. le
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 310 x 200 mm / 22.4 x 12.2 x 7.9 inch
Notes Gamme d'onda: medie e 6 corte. Stesso chassis Magnadyne S175.
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Kennedy (marca / brand); ved. le note / see text
Here you find 112 models, 73 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
